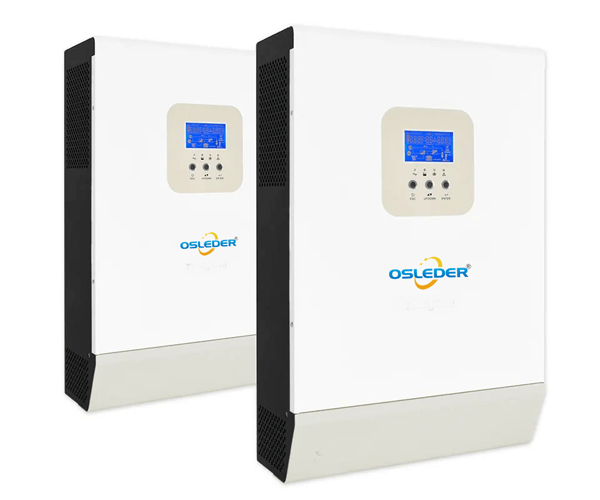

3KW-5KW Off-Grid Hybrid Solar Inverter Pure Sine Wave Power Inverter, MPPT Controller, fit for Lead-Acid/Lithium and No Battery with WIFI Monitoring for Home Energy Storage

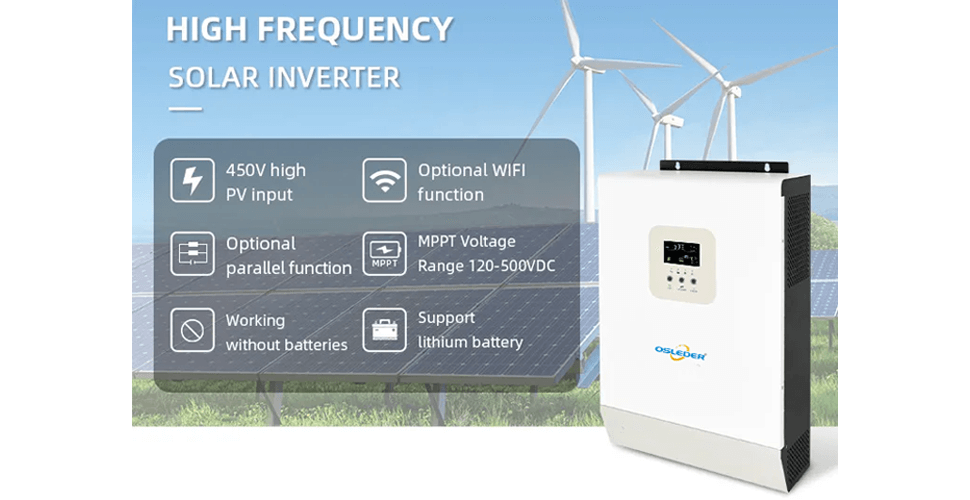

OS-OGH series is a multifunctional 230V off grid solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications. This Hybrid inverter can work with battery or without batteries.
- 【Multiple Battery Options】Solar Inverter Charger fit for 48V Lead-Acid, Lithium, User battery and without battery. Flexibly schedule the Inverter charging and discharging time, Support parallel operation for capacity expansion up to 45kW, max 9 units work together to support single phase equipment (only with battery connected)
- 【Complete Protections】Off Grid Solar Inverter has Overload/Over temperature/Short circuit protection. Smart design for optimizing battery performance. Intelligent variable speed fan efficiently dissipate heat and extend system life. Compatible to mains voltage or generator power, Automatic restart when AC power is restored.
- 【APP Remote Monitoring】All in One MPPT Inverter Compatible to mains voltage or generator power.Support WIFI/ GPRS remote monitoring, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere. (Need to be purchased separately )
- 【Wide Range of Uses】MPPT Inverter Charger Pure sine Wave for RV Camping Boat Home Emergency ect.. Can be accessed to a variety of household and office loads, including Oven, rice cooker, lamps, televisions, fans and other AC loads.（Be careful not to install it near the bedroom, the fan will make a sound when the inverter is running. Avoid affecting your rest.）
This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with portable size.
Its Can be accessed to a variety of household appliances and office loads, power tools, industrial equipment, and electronic audio and video equipment, including refrigerators, lamps, televisions, fans, air conditioning and other AC loads
Key Features of 3kw 5kw Off Grid Hybrid Solar Inverter:
1. Pure sine wave solar inverter
2. power factor 1
3. Wifi&GPRS available for IOS and android

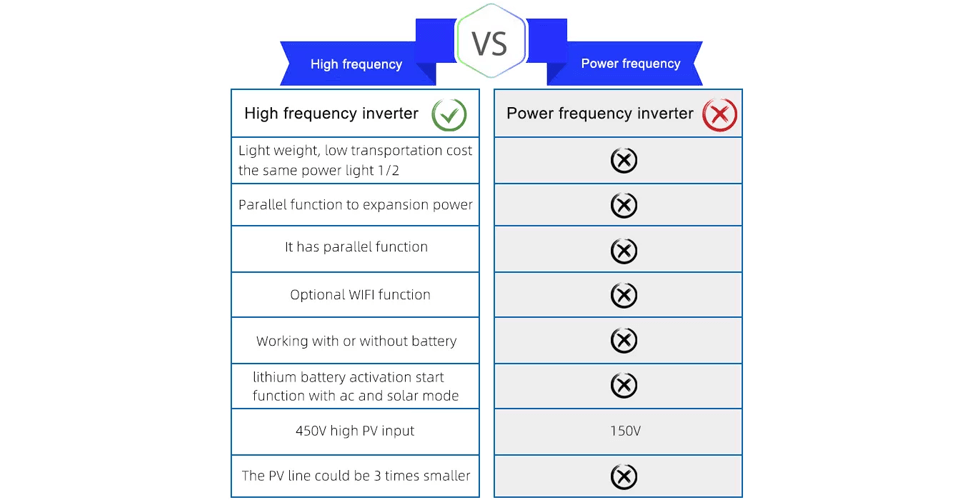

4. High frequency inverter with small size and light weight Pure sine wave AC output
5. Battery charging mode and load working mode can be set
6. Adjustable inverter charging and output time
7. Solar and utility grid can power loads at the same time With CAN/RS485 for BMS communication.
8. With the ability to work without battery
9. Parallel operation up to 6 unit (only with battery connected)
10. The WiFi / GPRS module is a plug-and-play monitoring device to be installed on the inverter. With this device, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere.(optional, Additional purchase required )
11. WORRY FREE WARRANTY:

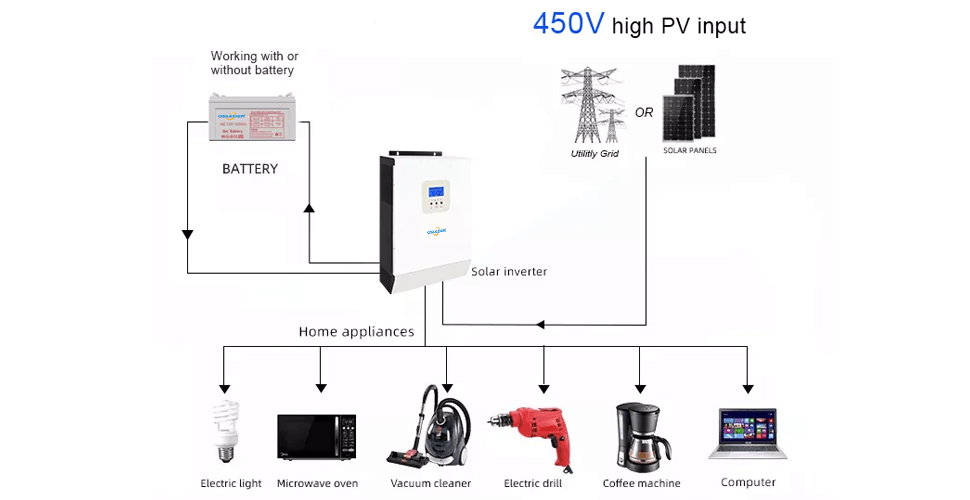

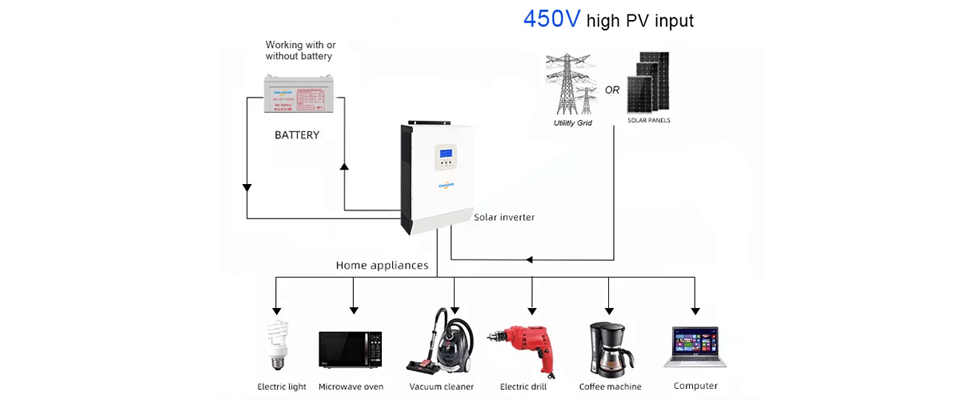

Basic System Architecture: The following illustration shows the basic application for this inverter/charger.
It includes the following devices to have a complete running system:
1.Generator or Utility.
2.PV modules Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in-home or office environment, including motor-type appliances such as tube lights, fans, refrigerators, and air conditioners.

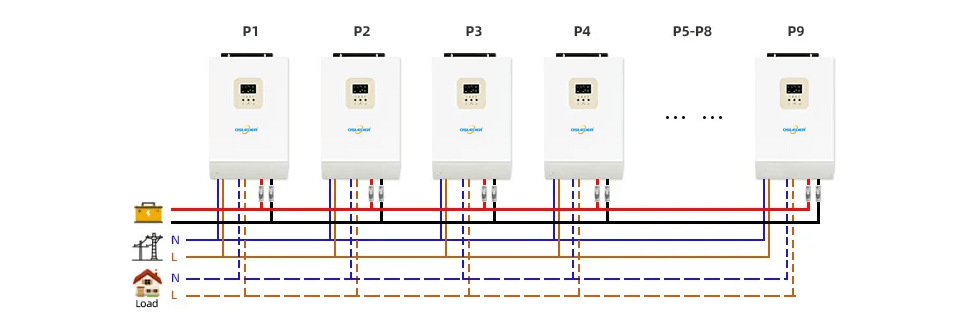

Operation in Single Phase up to maximum 9 units: Enarge More Loads:
This 5kw Off-Grid inverter support parallel function, which can be Two inverters in parallel; Three inverters in parallel; …. Up to 9 inverters can be connected in parallel! ! ! ! ! which means it can handle max 5000W*9 solar power and 5000W*9 ac power output system.
 |
 |
Adjustable Charging Voltage and Multiple Battery OptionsAuto/Manual adjustment voltage 12v/24v/48v. Pure sine wave inverter fits for 48V Lead-Acid(Seal, AGM, Gel, Flooded)/Lithium battery and can running without battery. |

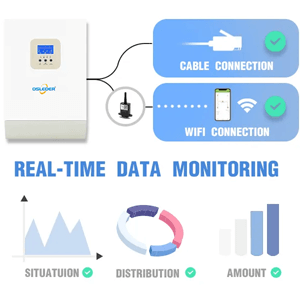

Real-time Data MonitoringThe WiFi / GPRS module is a plug-and-play monitoring device to be installed on the inverter. With this device, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere.(optional, Additional purchase required ). |
 |
 |
High Precison Voltage OutputMore accurage voltage output can extend equipment life. |

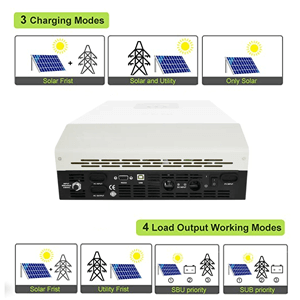

3 Safe Charging Modes and 4 Output ModesInverter support 3 charging modes: solar/utility priority/solar priority/utility hybrid charging. Four output modes can be set. PV priority/Utility priority/Inverter priority, which can meet users’ different application needs |
The Specification of 3KW 5KW Off-Grid Hybrid Solar Inverter with WIFI Monitoring for Home Energy Storage:
| Model: | OGH-3KW | OGH-5KW |
| Rated Power： | 3000W | 5000W |
| Peak Power: | 6000VA | 10000VA |
| Phase： | single phase | |
| Input Formation: | L+N+PE | |
| Input Voltage: | 220VAC | |
| Input Voltage Range： | 154-264VAC±3V（Normal Mode), 185-264VAC±3V（UPS Mode） | |
| Frequency range: | 50/60Hz+0.1% | |
| Output Voltage: | 208VAC 220VAC 230VAC240VAC 5% | |
| Transfer Time: | 10ms For Computer Equipment,20ms For Household Equipment | |
| Output Wave: | Pure Sine Wave | |
| Peak Efficiency (Battery Mode): | >94% | |
| Rated Voltage: | 24Vdc | 48Vdc |
| Constant Charging Voltage (Adjustable) |
28.2Vdc | 56.4Vdc |
| Charging Method: | MPPT | |
| MAX PV Input Power: | 3500W | 5500W |
| MAX PV Input Voltage: | 500Vdc | 500Vdc |
| MAX PV Charge Current: | 120A | 100A |
| MAX AC Charge Current: | 120A | 100A |
| MAX Charge Current: | 120A | 100A |
| MPPT Tracking Range: | 120~430VDC | |
| LCD Display: | 5PIN / Pitch2.0mm,Baud Rate2400 | |
| GENERAL: | ||
| Physical: | ||

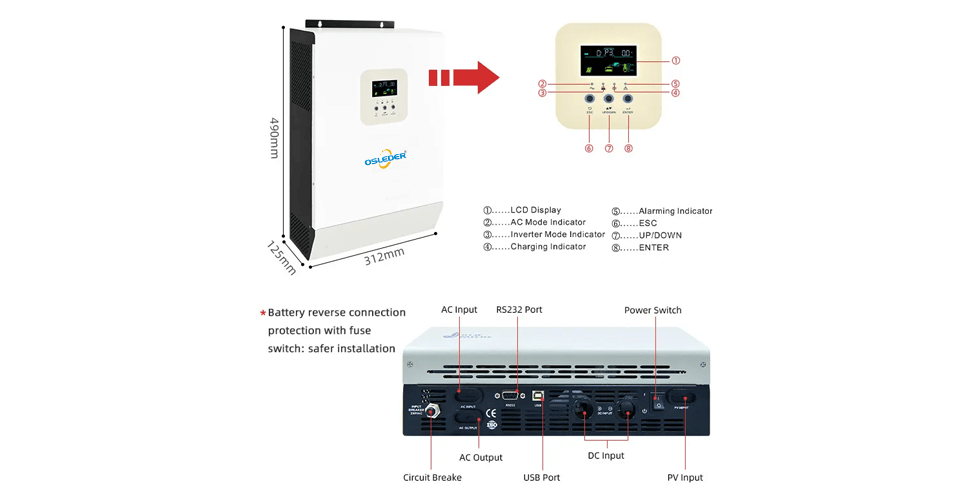

| Dimension DxWxH(mm): | 490*312*125mm | |
| Package size: L*W*H(mm): | 565*383*188mm | |
| Net Weight(kg): | 8.45kg | 11.56g |
| Gross Weight(kg): | 9.61kg | 13.45kg |
| Interface: | ||
| Communication Port: | RS232/WIFI/Remove LCD/GPRS | |
| Expansion & configuration port: |
2×5PIN/Pitch2.54mm, lithium battery BMS communication card,
WIFI card, dry contact card, etc.
|
|
| Parallel interface: | No | Yes |
| Environment: | ||
| Operating Temperature: | -10~50℃ | |
OSLEDER can provide you with a battery package.
The battery capacity of the correct matching system is determined according to the specific usage requirements of the load and application scenarios, otherwise, it will easily lead to insufficient battery capacity or excessive waste of power generation. For details, please refer to the manual recommendation or consult us for help.
Important Note:
This is a wide voltage Hybrid inverter, The voltage that starts to connect to the solar panel must be above 150V for the Hybrid inverter to work normally. Means you can connect solar panels in series, saving you the cost of buying wires.
