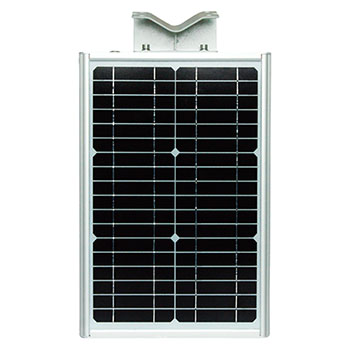

Economic Type All in One Solar LED Street Light 5W-200W

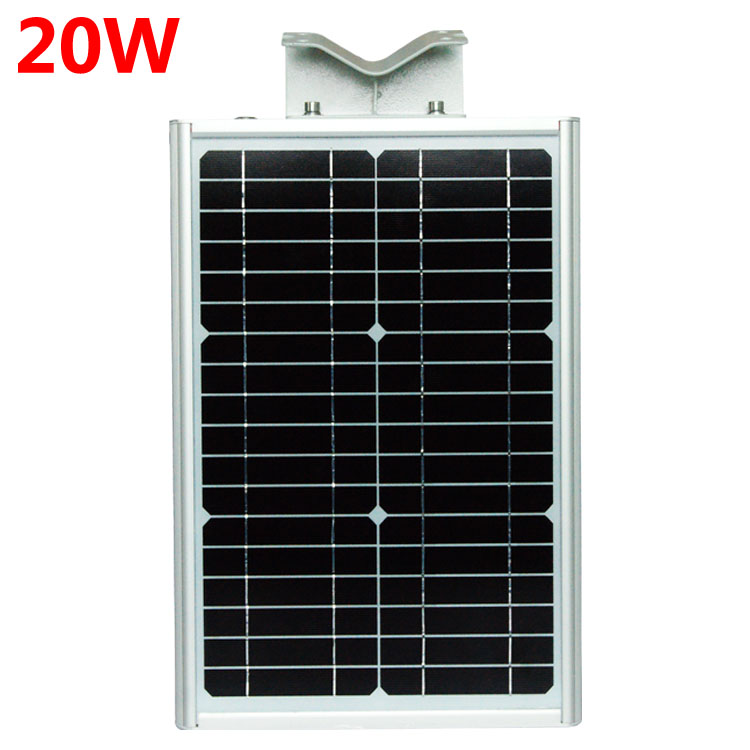

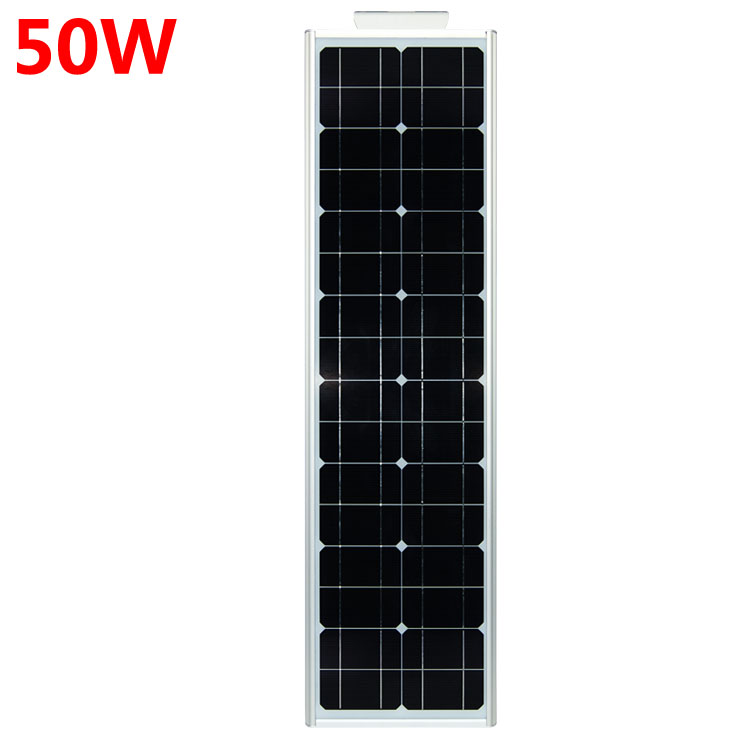

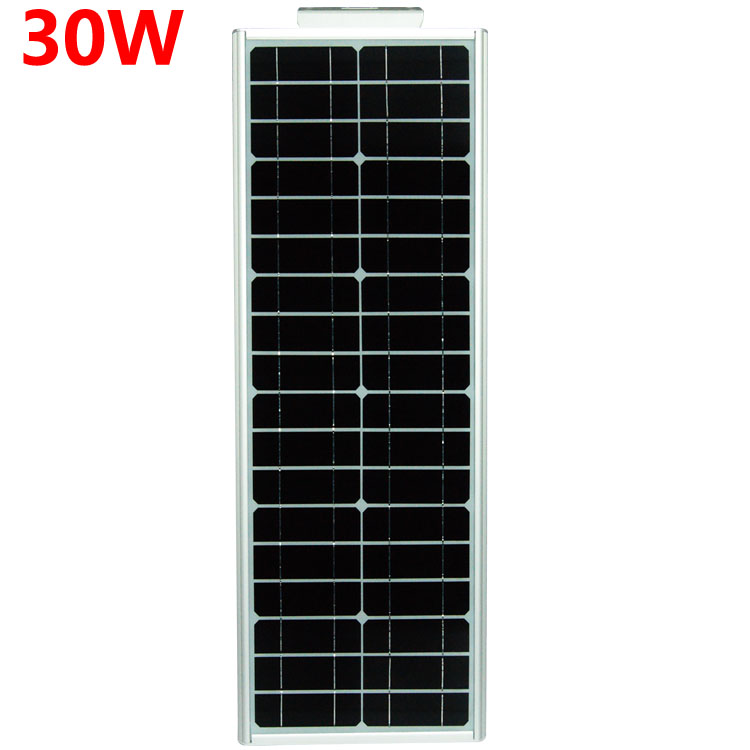

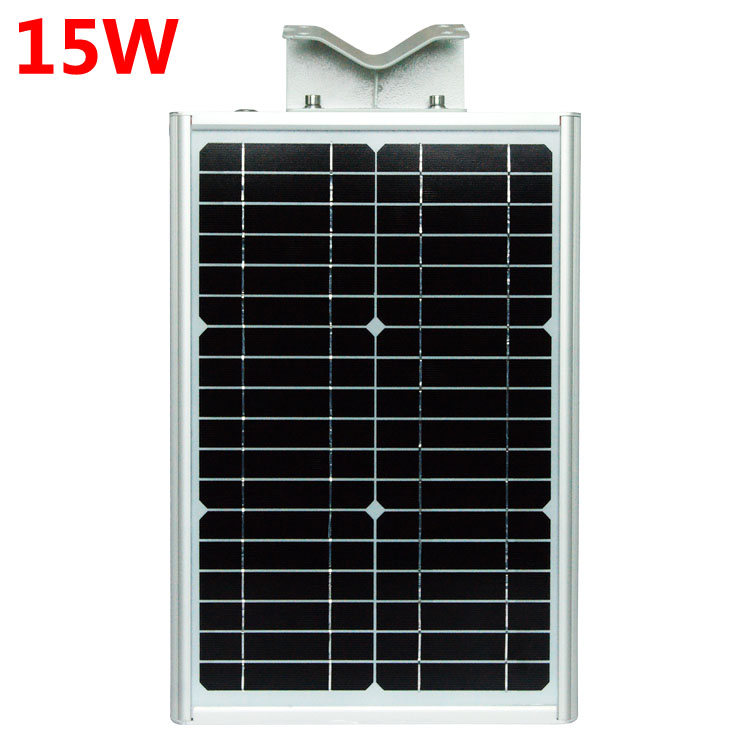

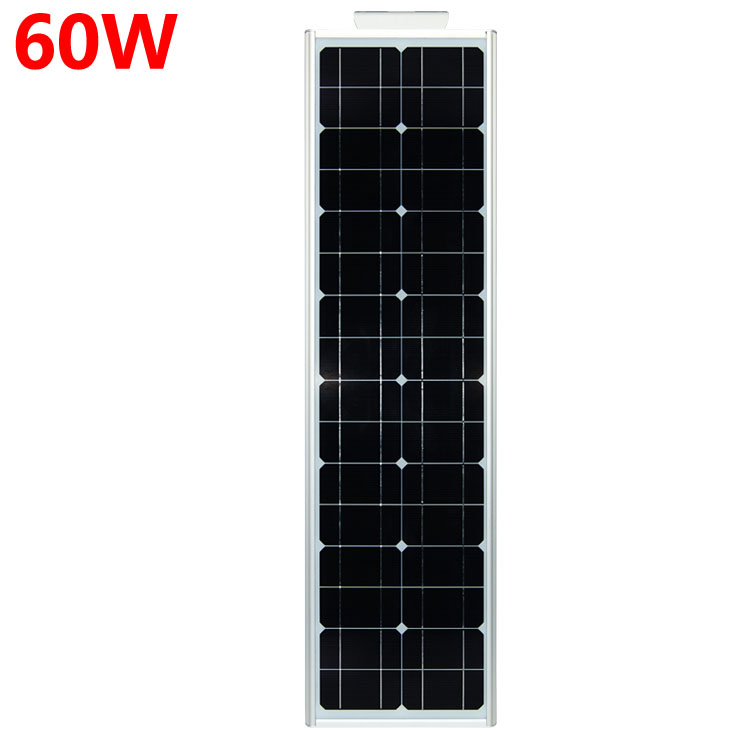

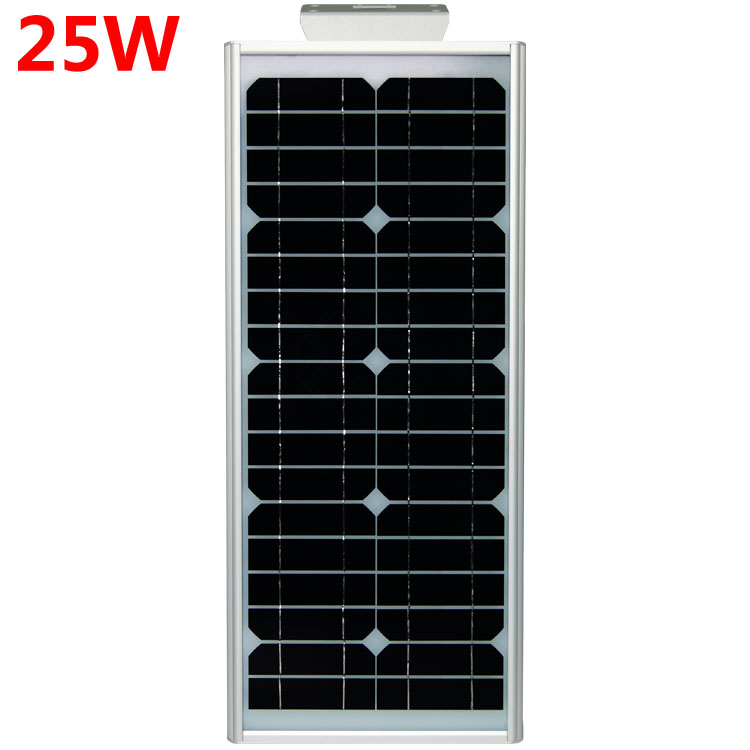

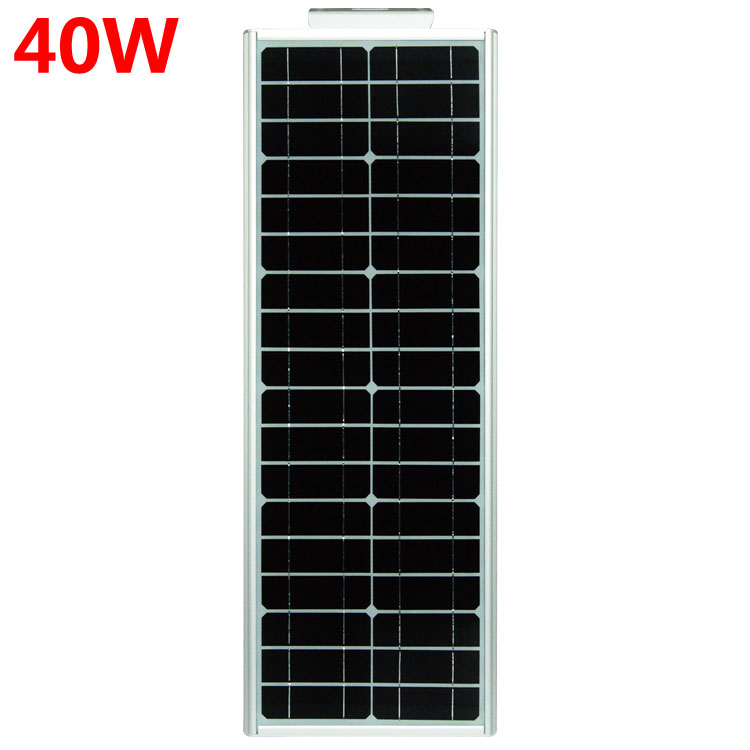

| Power: | 15W 20W 25W 30W 40 W 50W 60W 80W |
| LED efficiency: | 100-110lm/w |
| Color Temperature(CCT): | 2700K-6500K |
| LED Life time: | 50000hours |
| Certification: | ISO/CE / ROHS / IP65 |
| Warranty: | 3 Years |

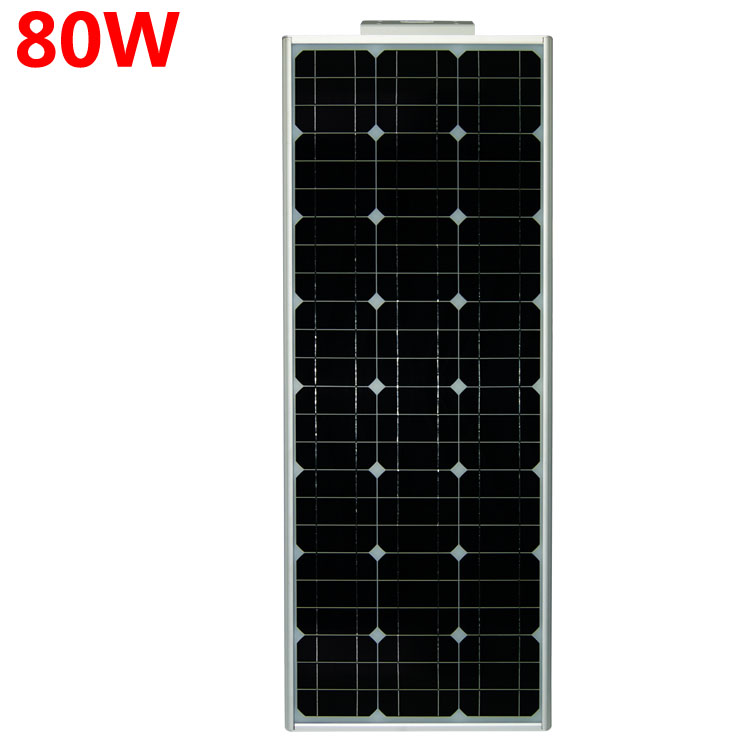

Osleder B type all in one Solar LED Street Light can do 15W to 80W, adopt high efficiency monocrystalline solar panel, high-end Bridgelux LED chip, long lifetime LoFePO4 battery and durable alluminuum alloy lamp housing, CE & RoHS approved and reach IP65, can working under -20-+70°, quite fit for towns and villages road lighting where there is plenty of sunshine. The product using sunlight energy and no need to connect wires, easy to transport and install, it’s your ideal street lighting choice.
Specification of intergrated solar LED street light-Osleder Lighting
Working Mode
- Working time : The lamp attomatically tern on after sunset ,and off when sunrise.
- Alternative working mode :During the working time ,the first few hours on full capacity,the rest time on power saving mode; full capacity and power saving mode’s woking time can be adjusted based on customers’ requirements.
Application:
- In general used in the street, highway, path, garden, park and residential quarter, country road , square and so on.
Feature/Benefits :
- All in one design ( integrate the solar panel , lamp, battery, controller together)
- No cable, easy to install, operate and maintain .
- Economical (no need to use electric).
- Practical (Intelligent management mode).
| Basic Data | Value |
|---|---|
| Item No.: | OS-STL-15W 20W 25W 30W 40 W 50W 60W 80W |
| Power: | 15W/20W/30W/40W/50W/60W/80W |
| Space between light(m): | 25-28m |
| Lamps material of main: | aluminium alloy |
| IP65 | |
| Silver White | |
| Warranty: | 3 Years |
| Electrical Data | Value |
|---|---|
| LED Max power: | 12.V 15W, 12.V 20W,12.V 25W,12.V 30W,12.V 40 W,12.V 50W,12.V 60W,12.V 80W |
| Solar panel Life time: | 25 years |
| Battery Type: | Life PO4 12.8V 9AH-36AH |
| Led chip brand: | Bridgelux from USA with high brightness |
| Sensor distance | 10m-12m |
| Certification: | ISO/ CE/ ROHS / IP65 |
| Temperature Data | Value |
|---|---|
| Lighting Viewing Angle: | 140°(bar wing street light distribution ) |
| Charge time(by sun): | 6-7hours (with enough strong shine) |
| Charge / Storage: | 0 – 45℃ |
| Working Temp: | -20~+75℃(-4℉~167℉） |
| Chip Information | Value |
|---|---|
| Chip Brand | Bridgelux from USA with high brightness |
| Color Temperature: | 2700K-6500K |
| Light EffIciency: | 100-110lm/W |
| Colour Rendering Index (CRI): | >=70 Ra |
