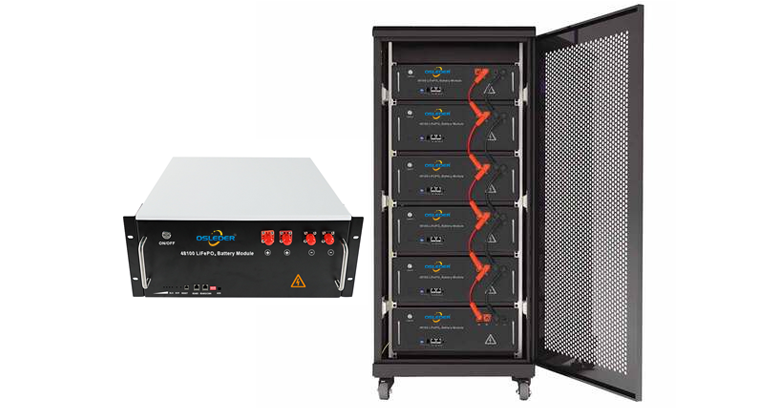

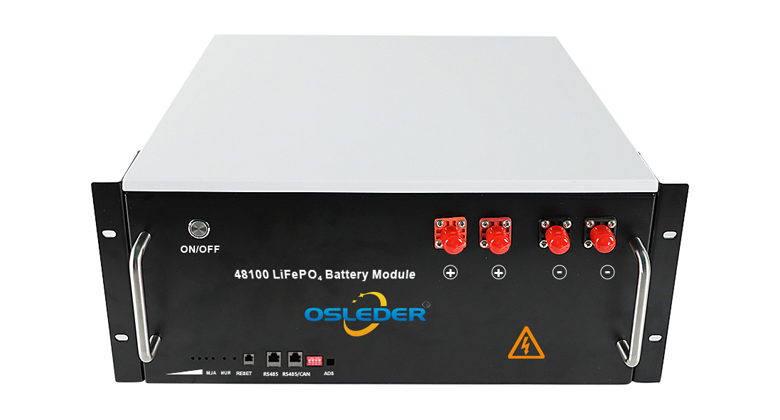

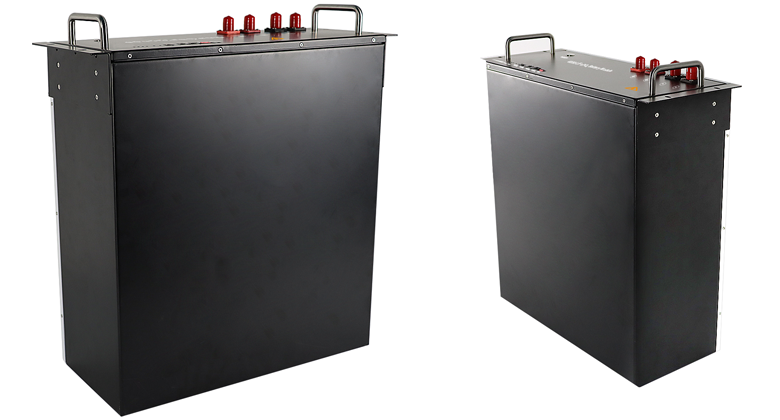

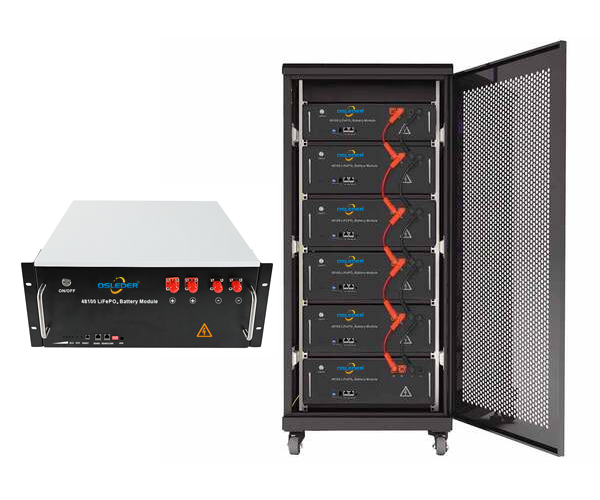

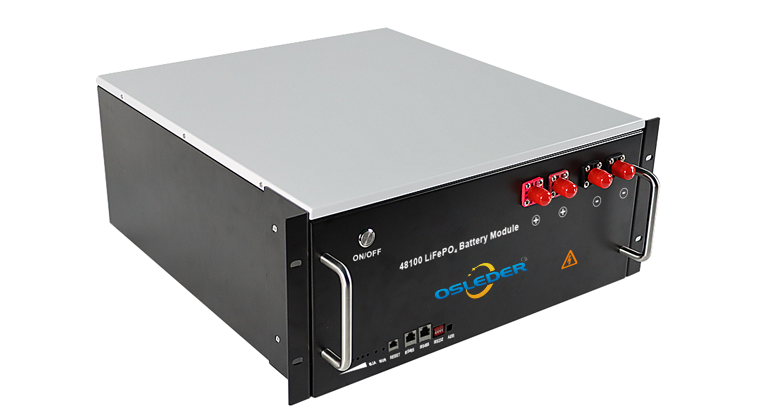

48V 5KWH-50KWH Rack mounted lithium iron phosphate battery energy storage system lithium battery pack
The 48v Rack Mount Lithium Battery is an ideal solution for residential storage applications, with a standard specification of 48V/100AH, up to 90% usable capacity, and a guarantee of 6000 life cycles. 48V rack type battery series include 48V 50ah LifePO4 battery, 48V 100Ah LifePO4 battery
| Array Mode: | 15S |
| Nominal Voltage (V): | 48 |
| Charge Voltage (V): | 54.7 |
| Discharge Cut-off Voltage (V): | 40 |
| Max. Continuous Charging Current (A): | 100 |
| Cycle Life: | ≥6000 times@80%DOD, 25°C |
| Communication Mode: | RS485/CAN |
Rack-mount Lithium Batteries —— More secure and cost-effective power source!
OSLEDER continues to pursue breakthroughs in battery performance, to put lithium batteries with larger capacity, higher security, smaller volume, and longer service life into the 19-inch standard cabinet, fully integrating excellent performance with small and flexible features, and having absolute advantages in size, layout, operation and maintenance, and cost, so as to make the application of lithium battery more extensive and provide more choices for different needs of customers Choose.
Key Features of 48v Rack Mount Lithium Battery:
- In parallel to enlarge energy, Standard 3U and 4U case.
- Intelligent lithium battery management system.
- Warning functions such as overcharge andoverdischarge.
- 4850 3U standard size, you canuse a universal 19-inch cabinet, configure different power levels, simple and convenient..
- Long life Equipped with charge balanceability, cycle life is more than 2000 times.
- Pack type energy storage battery can provide power for communication base stations.
- Add the current limiting module, support multiple battery parallel use, expand the battery capacity, meet the high energy demand of customers.
- Cabinet-type energy storage batteries are widely used in UPS to store power.
- With RS485 communication, you can monitor the battery status at any time and set protection parameters such as charge and discharge according to customers’requirements
- Cabinet energy storage batteries can also be used as home backup power.
Technical Specifications of 48v 50ah/100ah Rack Mount Lithium Battery:
| Model: | RMB-15S50AH | RMB-15S100AH | |
| Basic Characteristics | Battery Type： | LifePo4 Lithium Battery | |
| Array Mode: | 15S | ||
| Nominal Energy (KWh): | 2.4KWH | 4.8KWH | |
| Typical Capacity(AH): | 50AH | 100AH | |
| Typical Voltage(V): | 48V | ||
| Charging Characteristics |
Charge Voltage (V): | 54.7V | |
| Standard Charging Current(A): | 10A | 20A | |
| Max.Continuous Charging Current (A): | 50A | 100A | |
| Discharge Characteristics |
Standard Discharge Current: | 10A | 20A |
| Max.Continuous Discharging Curent (A): | 50A | 100A | |
| Peak Discharge Current: | 200A(3S) | ||
| Discharge Cut-off Voltage (V): | 40V | ||
| Environmental Requirements |
Charge Temperature Range: | 0~60°C | |
| Discharge Temperature Range: | -10°C~65°C | ||
| Storage Temperature Range: | -5~40°C | ||
| Storaqe Humidity: | 65±20％HR | ||
| Mechanical Characteristics |
Size(LxWxH) : | 453x493x133mm | 515x493x175mm |
| Net Weight (Kg): | 127.5kg | 41kg | |
| Package Size (LxWXH) : | 530x480x230mm | 530x540x260mm | |
| Gross Weight (Kg): | 39.5kg | 47kg | |
| Package Method: | 1pcs per carton | ||
| Others Characteristics |
Cycle Life: | ≥6000 times@80%DOD, 25°C | |
| Communication Mode: | RS485/CAN | ||
| Self Discharge | 2% per month | ||
| SOC Indication | LED Light& LCD Screen | ||

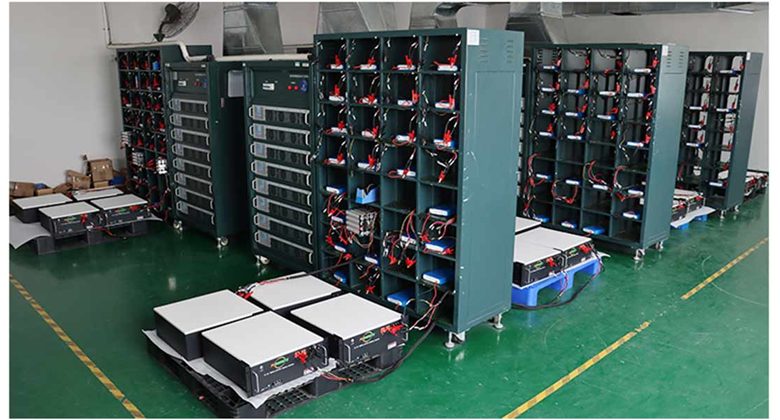

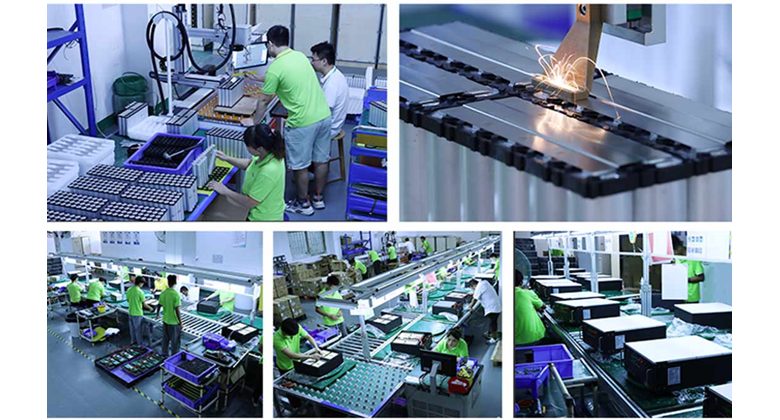

Production Process of 48V 5KWH-50KWH Rack mounted lithium iron phosphate battery energy storage system lithium battery pack:
Since 2012, OSLEDER has gained rich experience in designing and manufacturing the most efficient and robust hybird solar inverters and the most complete off-grid solar system. A focus on testing, quality control, and traceability ensures our solar power system offers an industry-leading warranty and reliability guarantee. Invest in yourself by going OSLEDER. This will be your most economical long-term investment yet.
