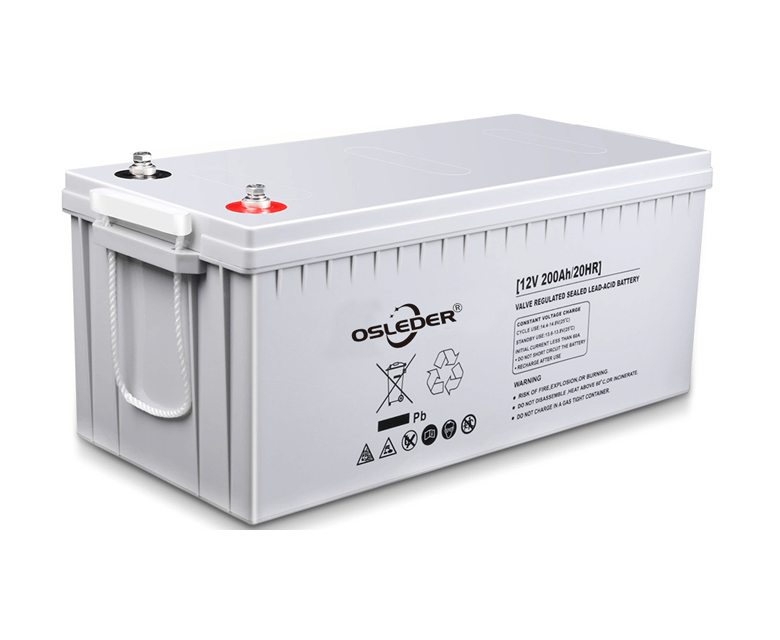

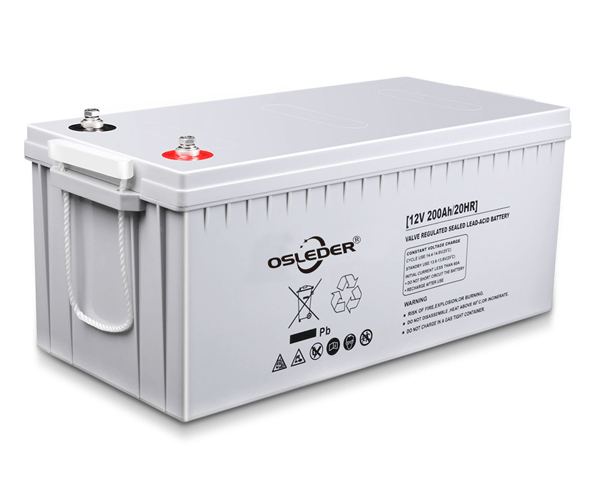

Long Life Rechargeable Deep Cycle AGM Solar Battery
The main advantage lead-acid has over other types of solar batteries is the price. Lead-acid is the cheapest. Lead-acid batteries are up to 2-3 times cheaper than lithium!
Due to its outstanding performance, the OSLEDER 12V Deep Cycle AGM Battery is a favorite in a wide variety of applications. Maintenance-free and leak-proof, the battery is ideal for standby projects that require minimal monitoring. Thanks to its high discharge rate and wide operation temperature range, the battery can also handle cyclic uses, such as RVs, boats, medical equipment, and lawnmowers. With the finest materials, state-of-the-art production techniques, and the strictest quality control measures, OSLEDER AGM batteries aim to provide the most reliable, convenient, and economical rechargeable battery solution.
Need a little more power? Connect several batteries in a series or parallel (up to 4) battery bank with OSLEDER Battery Interconnect Cables.
Key Features of Solar Lead-acid AGM Battery:
- Maintenance-Free ,Absorbent Glass Mat Technology .
- Low Self Discharge.
- Long Designed service Life ,Deep Cycles.
- Excellent Discharge Performance.
- Environment Friendliness.
- Wide suitability of ambient temperature range.
Applications of Solar Lead-acid AGM Battery:
- Solar and wind energy storage system.
- EPS and UPS battery backup.
- Signal system , emergency lighting system , security system.
- Telecommunication Equipment.
- Power source for portable devices or tools.
Technical Specifications of 12v 200AH Solar Lead-acid AGM Battery:
| Battery Model: | OS-AGM-12V200AH | |||
| Designed Floating Life: | 5-8 Years | |||
| Capacity(25°): | 20HR(10.5A,1.75V) | 10HR(20A,1.75V) | 5HR(34A,1.75V) | 1HR(126A,1.75V) |
| 210Ah | 200Ah | 170Ah | 126Ah | |
| Battery: | Type： | LifePO4 | ||
| Rated Capacity： | 51.2V 60AH | 51.2V 100AH | 51.2V 200AH | |
| Dimensions: | Dimensions | Weight | Height | Total Height |
| 522mm(20.6inch) | 240mm(9.4inch) | 224mm(8.8inch) | 145mm(9.65inch) | |
| Approx Weight: | 58kg(127.9 lbs) | |||
| Internal Resistance: | Full Charged at 25°C; 0.004 Ohm | |||
| Self Discharge: | 3% of capacity dedined per month at 25°C | |||
| Capacity Affected By
Temp.(20HR): |
40°C | 25°C | 0°C | -15°C |
| 102% | 100% | 85% | 65% | |
| Charge Voltage(25°C) | Cyde Use | Float use | ||
| 14.4-14.8V(-30mV/°C),max.Current:50 | 13.6-13.8V(-20mV/°C) | |||
 |

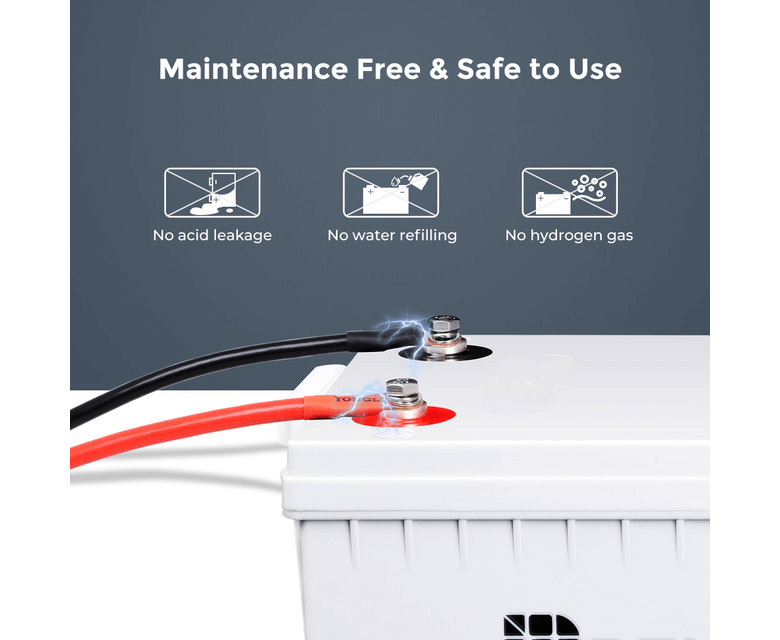

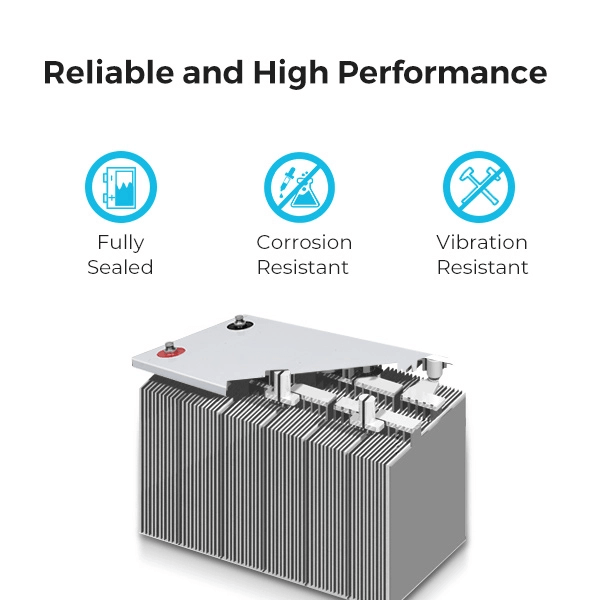

Sealed Battery, Safe Charging Manufactured with thick absorbent glass mat (AGM) separators and advanced valve regulated technology, the battery is maintenance-free, leak-proof, and gas-free. Proprietary quinary alloy plates and specially treated plate grids enable outstanding discharge performance.
|

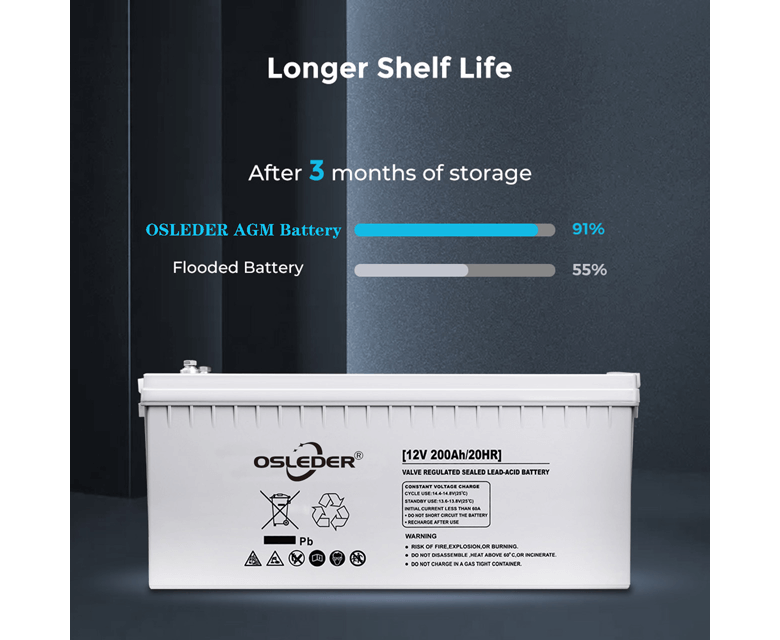

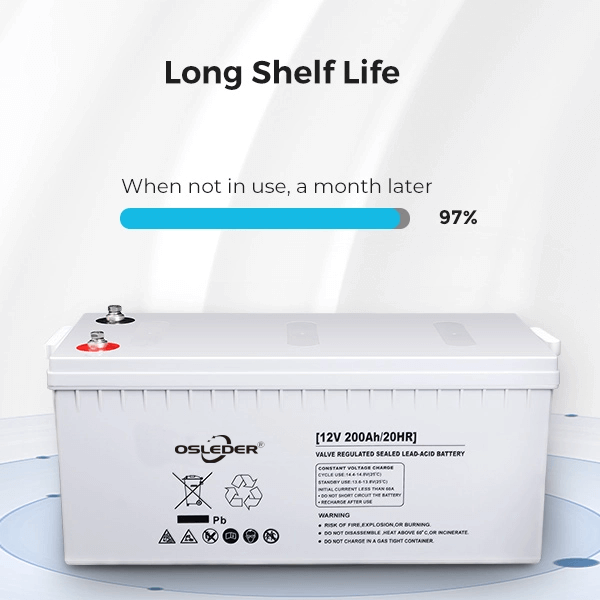

| Long Shelf Time
When not in use, the monthly self-discharge rate of this Renogy Deep Cycle AGM sealed battery is as low as 3% at 77℉ (25℃), which is 5 times lower than their flooded counterparts. |
 |
 |

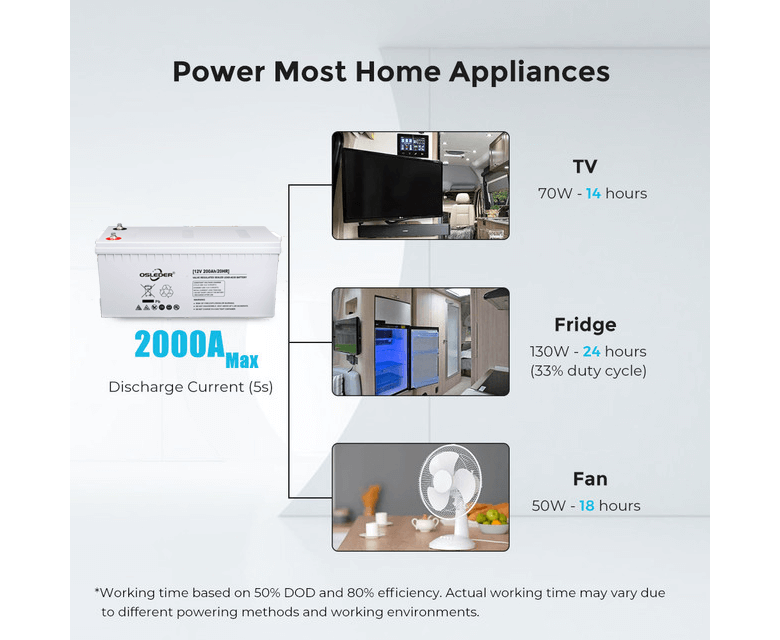

Power Most Appliances
The maximum 2000A discharge (5 seconds) is suitable for appliances that require a high startup current, like a fridge. With a consistent and stable discharge, the battery can power up most common home appliances, such as a microwave, CPAP, coffee maker, laptop, and more. |

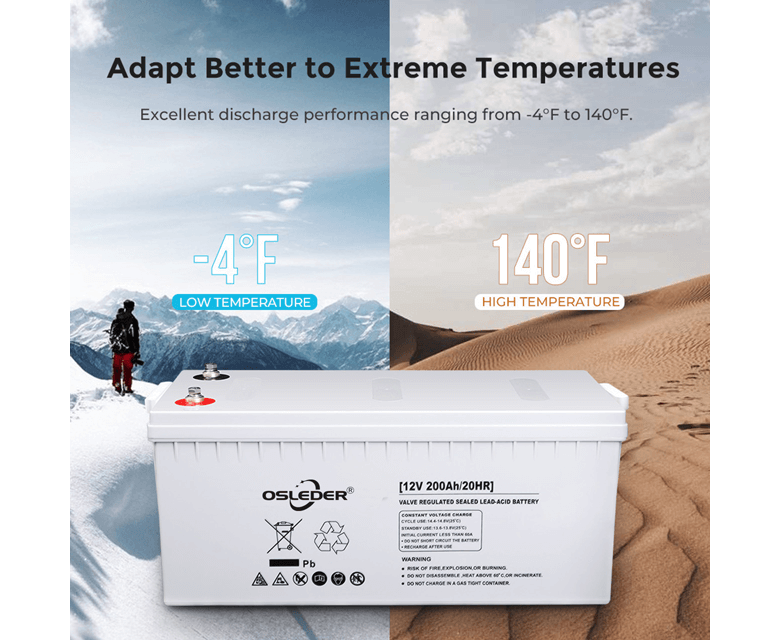

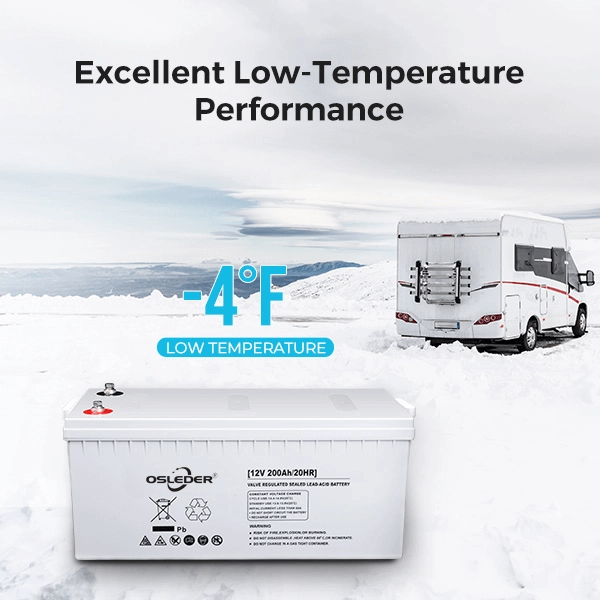

| Better Performance at Extreme Temperatures
The improved electrolyte formula ensures stable battery capacity and outstanding discharge performance from -4℉ (-20℃) to 140℉ (60℃). The battery is designed with solar energy storage applications in mind and provides optimum performance even at freezing temperatures. |
 |
 |

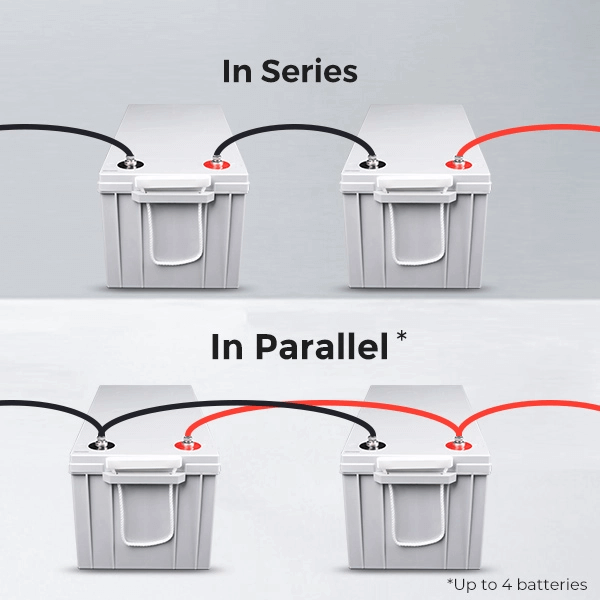

In Series and In Parallel
You can connect up to 4 batteries in parallel to expand the power capacity to meet your needs. You can also connect multiple batteries in series. It’s recommended to connect batteries with the same type (AGM), same capacity (Ah), and same voltage (V) from the same brand. We recommend using a battery balancer to extend the battery service life when multiple batteries are connected in series and/or in parallel. |

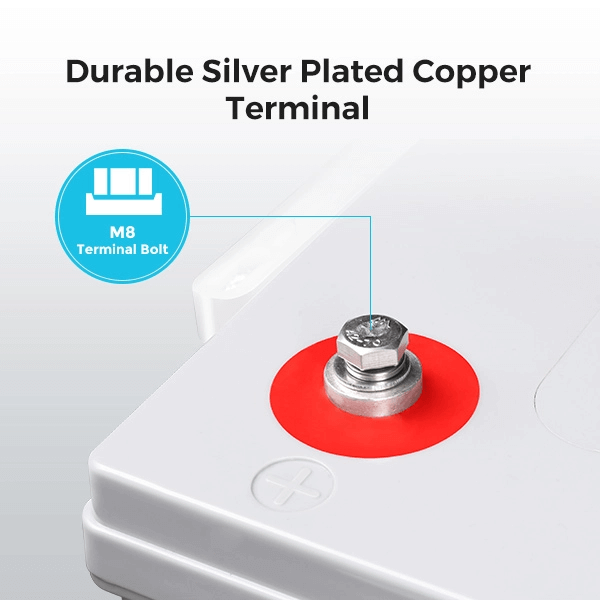

| Reliable and Durable

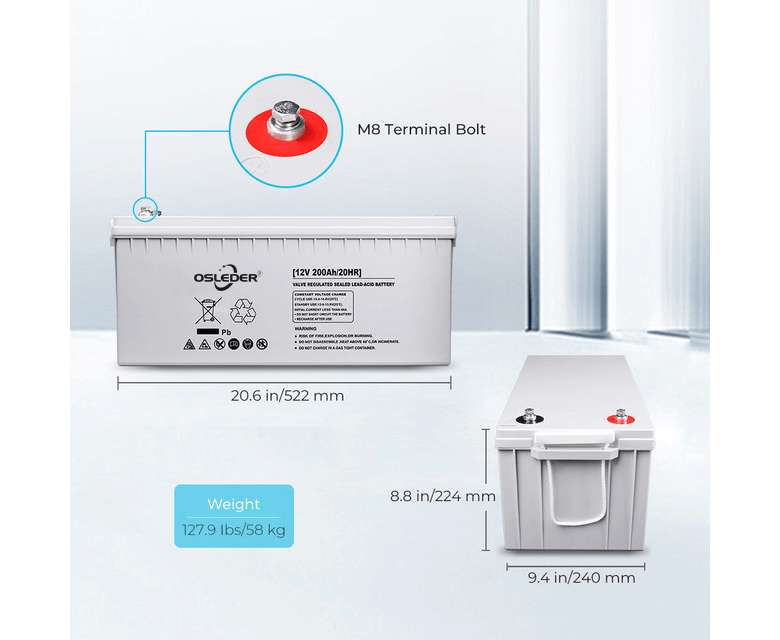

The battery comes with two silver-plated M8 terminal bolts for cable wiring. And there are positive (+) and negative (-) icons on the container for easy wiring identification. Built with rugged ABS container material, the battery is vibration resistant and durable. |
 |
 |

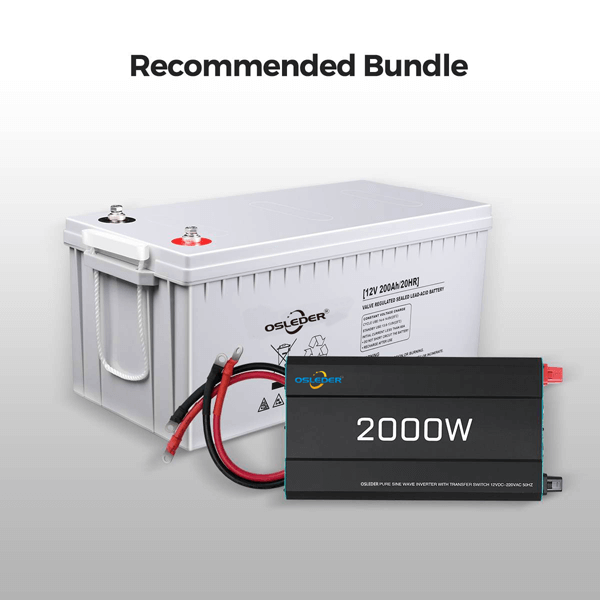

Perfect with OSLEDER 2000W Inverter
OSLEDER 200Ah AGM Battery works perfectly with the OSLEDER 2000W 12V Pure Sine Wave Inverter. The bundle is perfect for off-grid systems, whether for a van, semi-truck, 5th wheel, cabin, or any remote location needing power. The 2000W Pure Sine Wave Inverter converts DC Power stored in batteries into AC Power, allowing you to power your household appliances. The advanced OSLEDER pure sine wave technology will allow you to power just about any AC appliance without risk of damage to even your most sensitive equipment. |
NOTE:
- To avoid cycle life shortening, it is recommended not to discharge the battery below 50%.
- It is highly recommended to use a battery balancer to extend the battery service life when multiple batteries are connected in series and/or in parallel.
- We highly recommend installing the battery upright. It is allowed to install the battery on its side only if there are special reasons for doing so. DO NOT install the battery upside down.
- It is recommended to connect batteries with the same type (AGM), same voltage (V), and same capacity (Ah) from the same brand.
