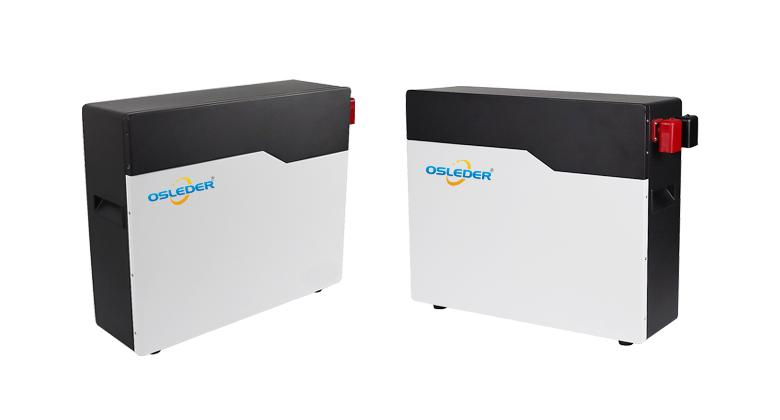

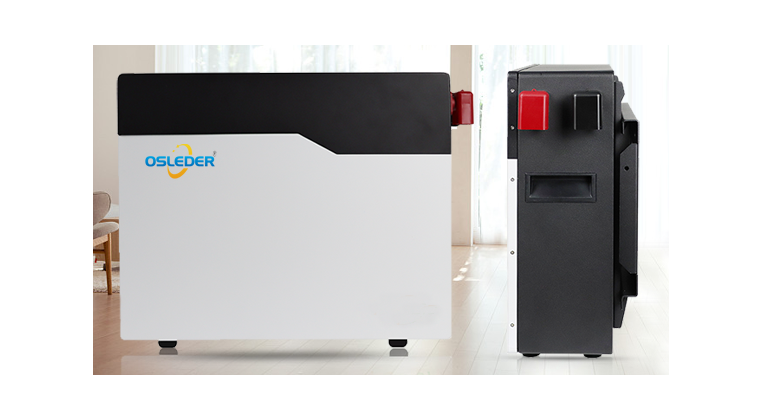

Power wall 24v / 25.6V Solar LifePo4 lithium battery
24V Lithium ion battery have 2 types of products, 24V 200Ah Lithium ion batteries and 24V 100Ah Lithium batteries, the operating voltage range is from 20V to 29.2V and the normal voltage is 25.6V.
25.6V Li ion battery includes smart BMS with max 100A continuous operating current at RT and smart protection functions.
LifePO4 battery with grade A deep cycle cells that improved the 24V batteries’ cycle life and the electrochemical performances.
| Nominal Capacity (Ah): | 100ah and 200ah |
| Nominal Voltage (V): | 25.6 |
| Charge Voltage (V): | 29.2 |
| Discharge Cut-off Voltage (V): | 20 |
| Max.Continuous Charging Current (A): | 100 |
| Cycle Life: | ≥6000 times@80%DOD, 25°C |
| Communication Mode: | RS485/CAN |
Key Features of Power wall 24v / 25.6V Solar LifePo4 lithium battery：
- Small size and light weight.
- Modular design, higher integration, and saves installation space.

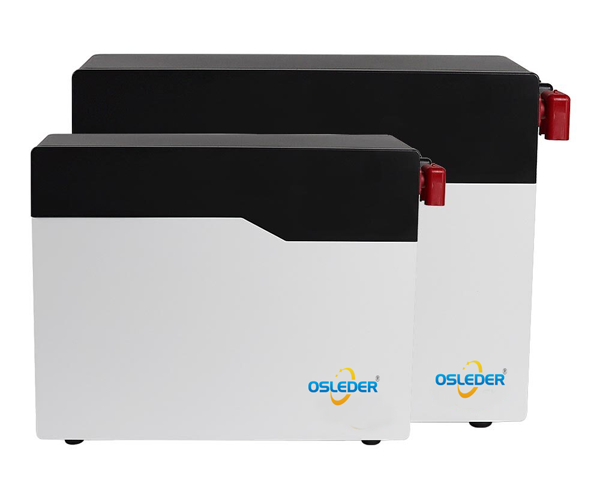

- 100Ah and 200Ah powerwall, support up to 15 modules in parallel..
- LifePO4 battery with grade A deep cycle cells that improved the 24V batteries’ cycle life and the electrochemical performances.
- External main switch to reduce product power consumption and improve safety.

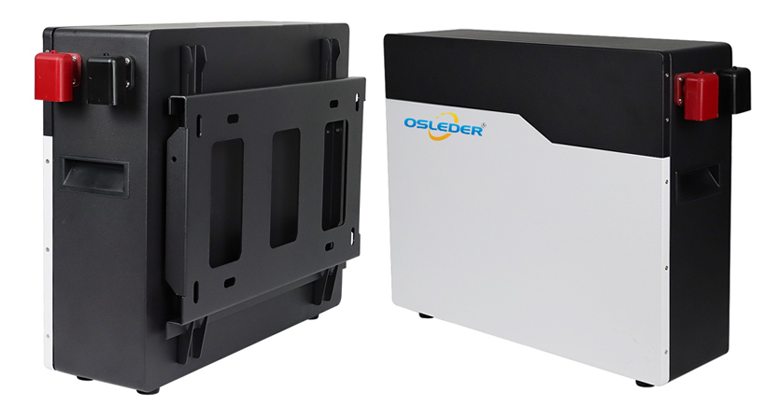

- Wall brackets, which can meet the installation and use of different place.
- BMS bulit inside, over-voltage, over-load, over-temperature protection, atc.
- Compatible, can be connected to different types of loads within the voltage range.
- Energy storage battery has high output power and usable energy ratio, can reach 95% usable ratio.
- Highly compatible BMS, seamless connection with energy storage inverter.
High energy, low power lithium battery equipment achieves higher energy supply, lower energy consumption, and reduces environmental pollution.
Technical Specifications of Power wall 24v / 25.6V Solar LifePo4 lithium battery:
| Model: | LPB-8S100AH | LPB-8S200AH | |
| Basic Characteristics | Battery Type： | LifePo4 Lithium Battery | |
| Array Mode: | 8S | ||
| Nominal Energy (KWh): | 2.5KWH | 5KWH | |
| Typical Capacity(AH): | 100AH | 200AH | |
| Typical Voltage(V): | 25.6V | ||
| Charging Characteristics |
Charge Voltage (V): | 29.2V | |
| Standard Charging Current(A): | 20A | 40A | |
| Max.Continuous Charging Current (A): | 100A | ||
| Discharge Characteristics |
Standard Discharge Current: | 20A | 40A |
| Max.Continuous Discharging Curent (A): | 100A | ||
| Peak Discharge Current: | 200A(3S) | ||
| Discharge Cut-off Voltage (V): | 20V | ||
| Environmental Requirements |
Charge Temperature Range: | 0~60°C | |
| Discharge Temperature Range: | -10°C~65°C | ||
| Storage Temperature Range: | -5~40°C | ||
| Storaqe Humidity: | 65±20％HR | ||
| Mechanical Characteristics |
Size(LxWxH) : | 500x 140x402mm | 500x205x405mm |
| Net Weight (Kg): | 34.5kg | 61kg | |
| Package Size (LxWXH) : | 677x507x385mm | 677x507x385mm | |
| Gross Weight (Kg): | 52.8kg | 75.5kg | |
| Package Method: | 1pcs per carton | ||
| Others Characteristics |
Cycle Life: | ≥6000 times@80%DOD, 25°C | |
| Communication Mode: | RS485/CAN | ||
| Self Discharge | 2% per month | ||
| SOC Indication | LED Light& LCD Screen | ||
Production Process of Power wall 24v / 25.6V Solar LifePo4 lithium battery:
Since 2012, OSLEDER has gained rich experience in designing and manufacturing the most efficient and robust hybird solar inverters and the most complete off-grid solar system. A focus on testing, quality control, and traceability ensures our solar power system offers an industry-leading warranty and reliability guarantee. Invest in yourself by going OSLEDER. This will be your most economical long-term investment yet.
