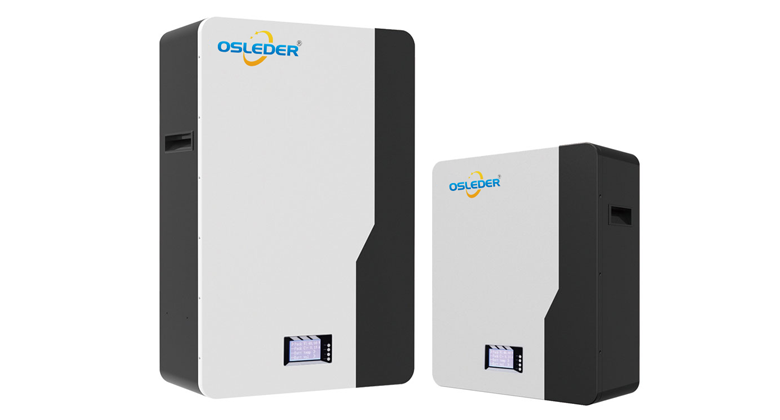

Power wall 48v Solar LifePo4 Lithium Battery

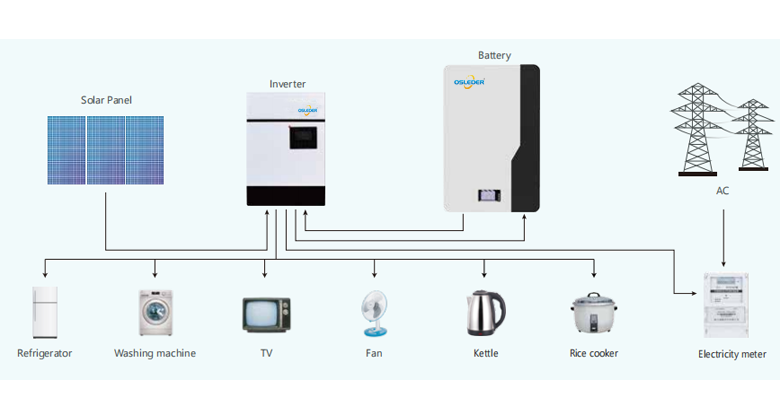

The power wall solar battery is a wall mounted lithium battery pack which consists of long span LiFePO4 battery cells and functional BMS. OSLEDER energy storage LifePO4 cells battery pack can replace the traditional lead-acid battery perfectly, and can exchange information with various types of solar energy storage, widely used for off-grid, grid-tie and other solar energy storage systems; used for outdoor lighting, emergency or temporary electricity needed, field working, also for family standby power.
| Nominal Energy (KWh): | 10 |
| Nominal Voltage (V): | 51.2 |
| Charge Voltage (V): | 58.4 |
| Discharge Cut-off Voltage (V): | 42 |
| Standard Charging Current(A): | 40 |
| Cycle Life: | ≥6000 times@80%DOD, 25°C |
| Communication Mode: | RS485/CAN |
Key Features of Power wall 48v/51.2V Solar LifePo4 Lithium Battery:
- Small size and light weight.
- Modular design, higher integration, and saves installation space.
- 100Ah and 200Ah powerwall, support up to 15 modules in parallel..
- High-quality 51.2V 48V 200Ah LifePO4 Powerwall Battery, safety, deep cycle and long lifespan.
- External main switch to reduce product power consumption and improve safety.

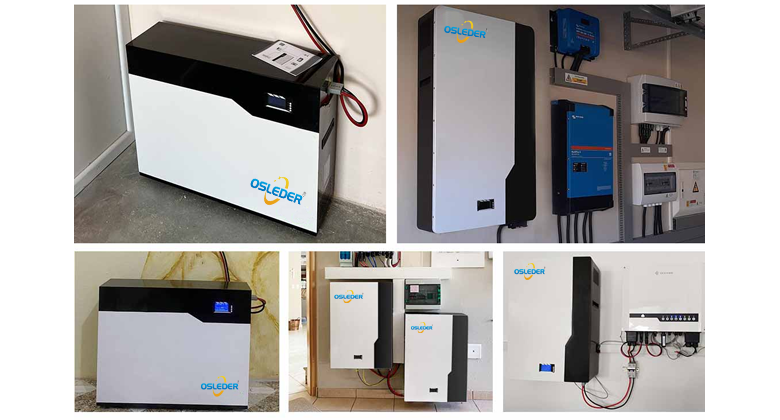

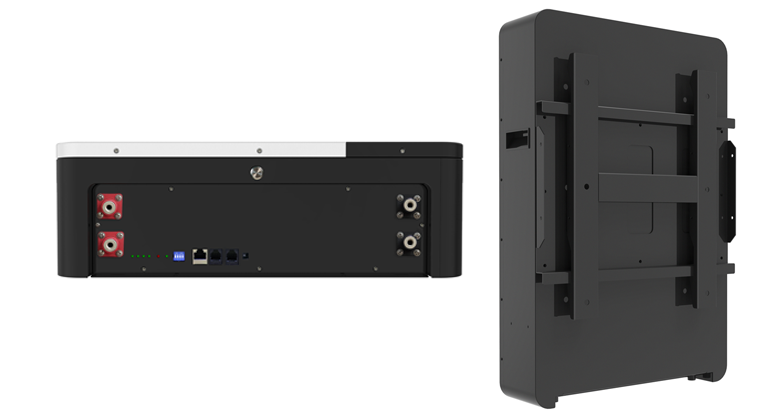

- Wall brackets, which can meet the installation and use of different place.
- BMS bulit inside, over-voltage, over-load, over-temperature protection, atc.
- Compatible, can be connected to different types of loads within the voltage range.
- Energy storage battery has high output power and usable energy ratio, can reach 95% usable ratio.
- Highly compatible BMS, seamless connection with energy storage inverter.
High energy, low power lithium battery equipment achieves higher energy supply, lower energy consumption, and reduces environmental pollution.
Technical Specifications of Power wall 48v/51.2V Solar LifePo4 Lithium Battery:
| Model: | LPB-16S100AH | LPB-16S200AH | |
| Basic Characteristics | Battery Type： | LifePo4 Lithium Battery | |
| Array Mode: | 16S | ||
| Nominal Energy (KWh): | 5KWH | 10KWH | |
| Typical Capacity(AH): | 100AH | 200AH | |
| Typical Voltage(V): | 51.2V | ||
| Charging Characteristics |
Charge Voltage (V): | 58.4V | |
| Standard Charging Current(A): | 20A | 40A | |
| Max.Continuous Charging Current (A): | 100A | ||
| Discharge Characteristics |
Standard Discharge Current: | 20A | 40A |
| Max.Continuous Discharging Curent (A): | 100A | ||
| Peak Discharge Current: | 200A(3S) | ||
| Discharge Cut-off Voltage (V): | 42V | ||
| Environmental Requirements |
Charge Temperature Range: | 0~60°C | |
| Discharge Temperature Range: | -10°C~65°C | ||
| Storage Temperature Range: | -5~40°C | ||
| Storaqe Humidity: | 65±20％HR | ||
| Mechanical Characteristics |
Size(LxWxH) : | 445x170x510mm | 445x206x675mm |
| Net Weight (Kg): | 47kg | 85kg | |
| Package Size (LxWXH) : | 575x520x335mm | 750x520x385mm | |
| Gross Weight (Kg): | 68kg | 110kg | |
| Package Method: | 1pcs per carton | ||
| Others Characteristics |
Cycle Life: | ≥6000 times@80%DOD, 25°C | |
| Communication Mode: | RS485/CAN | ||
| Self Discharge | 2% per month | ||
| SOC Indication | LED Light& LCD Screen | ||

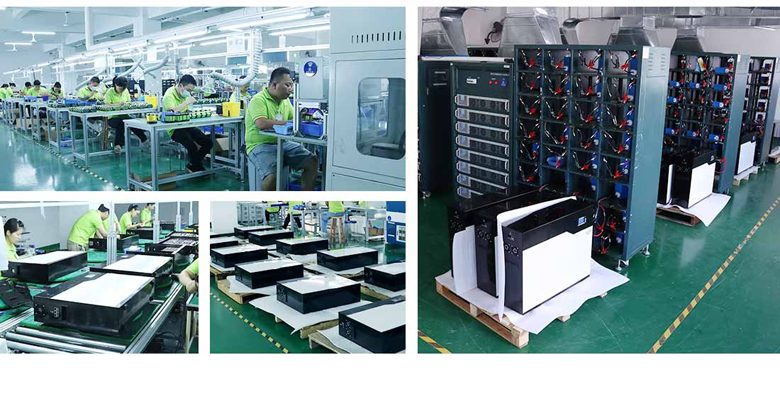

Production Process of Power wall 48v Solar LifePo4 Lithium Battery:
Since 2012, OSLEDER has gained rich experience in designing and manufacturing the most efficient and robust hybird solar inverters and the most complete off-grid solar system. A focus on testing, quality control, and traceability ensures our solar power system offers an industry-leading warranty and reliability guarantee. Invest in yourself by going OSLEDER. This will be your most economical long-term investment yet.
