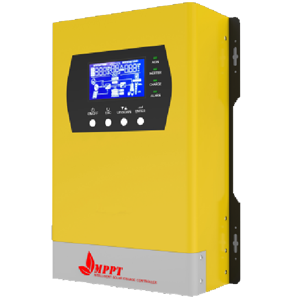

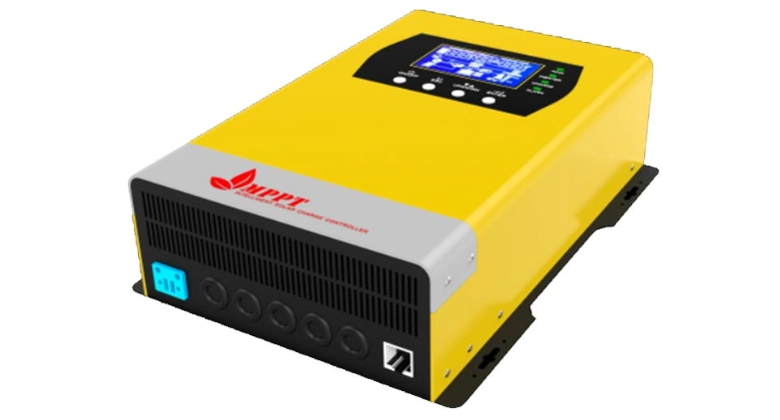

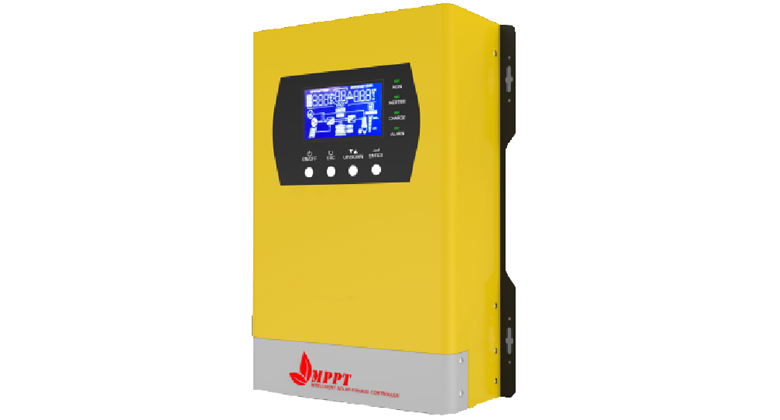

Manufacturer Supply 98% Efficiency MPPT solar charge controller 12V 24V 48V 40A 60A 80A 100A for Lifep04, Sealed, Gel, AGM, Flooded, Lithium Battery
| System voltage: | 12/24V/36V/48V Automatic adaption |
| Rated charging current: | 40A/60A/80A/100A |
| Rated discharge current: | 40A/60A/80A/100A |
| PV Maximum Input Voltage: | 17V~150V |
| Charging mode: | MPPT maximum power point tracking |
| Working temperature: | -20~+55℃ |
The most cost-effective solar controller, FACTORY PRICE, OEM service.
MPPT (Maximum Power Point Tracking)Solar Charge Controller offer an efficient, safe, multi-stage recharging process that prolongs battery life and assures peak performance from a solar array. Each Charge Controller allows customized battery recharging.

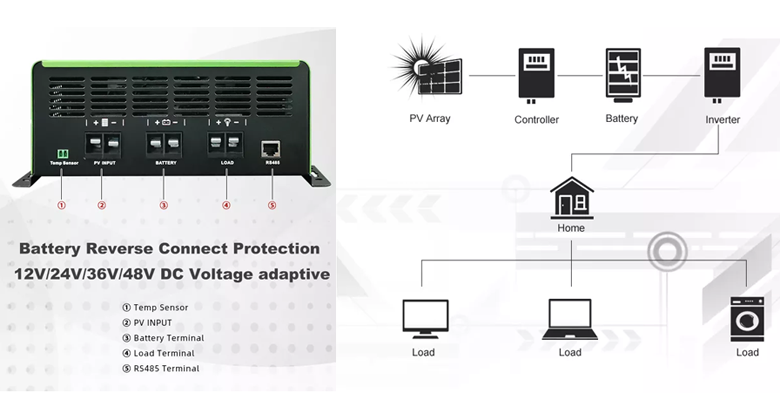

High Efficiency Charging Method, MPPT Maximum Power Point Tracking, Intelligent Control, Input and output over-voltage protection, Battery Reverse Connect Protection
12V/24V/36V/48V DC Voltage adaptive 40A 60A 80A 100A available.

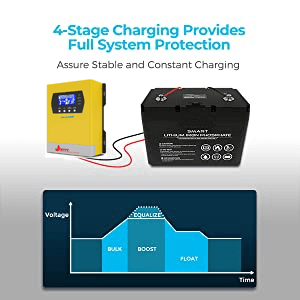

- Three-stage smart charging, Adjustable parameters by pressing buttons, 12V/24V/48V adaptive.
- Production: High voltage protection,Over load protection,Battery reverse connected protection, Low voltage protection, Overheating protection, Output short-circuit protection.

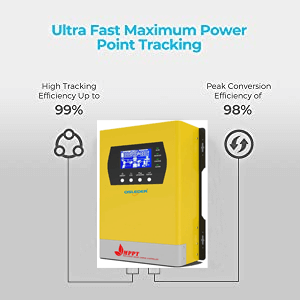

- The maximum utilization rate of solar energy can reach 99%, With super fast charging algorithm, efficiency increased by 30%.
- PV input range is wide, users can choose different numbers of solar panels according to actual conditions.
- Under the maximun benefit of energy collection conditions, fast Charging, absorption charging, floating charging, etc. maintain the battery life.
- Display: can display PV voltage, PV power, battery voltage, charging current, working temperature, fault code.
- With over charge, over discharge, overload, open circuit protection, over temperature protection, short circuit automatic protection.
- Applications: Home Appliances/yacht and boat/Telccom Equipment/Street light and CCTV system/cavaran/agriculture and fishery…
Product parameters：
| Model: | MPL40 | MPL60 | MPL80 | MPL100 | |
| System Voltage: | 12/24V/36V/48V Automatic adaption | ||||
| Rated charging current: | 40A | 60A | 80A | 100A | |
| Rated discharge current: | 40A | 60A | 80A | 100A | |
| Charging mode: | MPPT maximum power point tracking | ||||
| Applicable battery type: | Lithium Battery, Sealed lead acid battery, GEL lead acid battery, open lead acid battery (can also customize parameters for other types of battery charging | ||||
| Charging method: | Three stages: constant current, constant voltage, floating charge | ||||
| PV input maximum open circuit voltage (VOC): | DC150V | ||||
| Starting time: | ≤10s | ||||
| Dynamic response recovery time: | ≤500us | ||||
| Static power: | ≤1W | ≤1.2W | |||
| Overall efficiency: | ≥98.5% | ≥99.5% | |||
| System identified voltage： | 12V | 8～16V | |||
| 24V | 17～30V | ||||
| 36V | 30～42V | ||||
| 48V | 42～64V | ||||
| Photovoltaic input voltage: | 12V | 17～150V | |||
| 24V | 30～150V | ||||
| 36V | 41～150V | ||||
| 48V | 53～150V | ||||

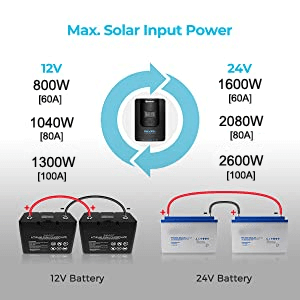

| Solar panel rated input power: | 12V | 540W | 800W | 1040W | 1300W |
| 24V | 1080W | 1600W | 2080W | 2600W | |
| 36V | 1620W | 2400W | 3240W | 3900W | |
| 48V | 2160W | 3200W | 4160W | 5200W | |
| Load voltage: | Same as the battery voltage | ||||
| Nominal load current: | 40A | 60A | 80A | 100A | |
| Load control method: | Normally on&off mode | ||||
| Load undervoltage protection | 10.5V*N（N stands for batteries number）Parameters can be adjustable | ||||
| Display： | HD LCD backlight display | ||||
| Protections： | Input and output over-voltage protection, input and output anti-reverse protection, over-temperature protection, load over-current protection | ||||
| Working temperature: | -20℃～+50℃ | ||||
| Storage temperature: | -40℃～+70℃ | ||||
| Accoustic Noise(db): | ≤50dB | ||||
| Humidity: | 0～90%RH | ||||
| orking altitude: | 0～3000M | ||||
| Dimension, L×W×H: | 180*300*110mm | 440*325*120mm | |||
| Net Weight（KG）: | 4.3KG | 9.46KG | |||
Production Process of MPPT solar charge controller:
Since 2012, OSLEDER has gained rich experience in designing and manufacturing the most efficient and robust hybird solar inverters and the most complete off-grid solar system. A focus on testing, quality control, and traceability ensures our solar power system offers an industry-leading warranty and reliability guarantee. Invest in yourself by going OSLEDER. This will be your most economical long-term investment yet.
