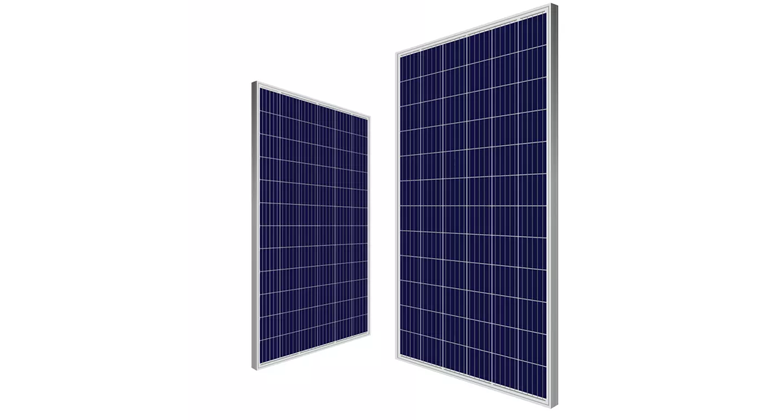

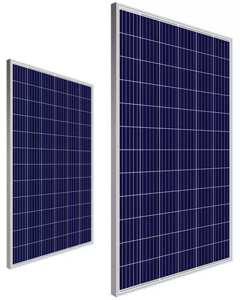

Good Price Solar Generator Polycrystalline Solar Panel
Polycrystalline or Multicrystalline solar panels are solar panels that consist of several crystals of silicon in a single PV cell. Several fragments of silicon are melted together to form the wafers of polycrystalline solar panels.
| Brand: | OSLEDER |
| Order(MOQ): | 1 Pallet |
| Payment: | T/T, L/C, Paypal, Western Union |
| Product Origin: | China |
| Shipping Port: | Guangzhou, Shenzhen, Shanghai |
| Lead Time: | 10-20 Days After Payment Received |
| Warranty: | 25 Years Linear Warranty |
Details of Polycrystalline Solar Panel:
 |
 |

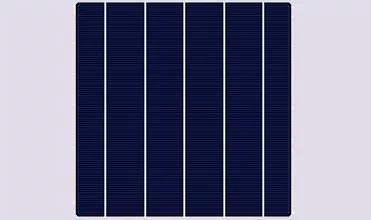

Polycrystalline Solar cells1.High Efficiency PV Cells
2. Appearance Consistency
3.Color sorting ensure consistent appearance on each module
4.Anti-PID
|
Glass1.Ture clear low iron glass
2.Translucency of normal luminance is increased 2%
3.Module efficiency is increased 2%
4.Service life is as long as 25 years
|
 |
 |
Frame1.Silvery and black
2. Thickness 30/35/40/45/50mm 3.Boost bearing capability and prolong service life
4.Serrated-clip design tensile strength
5.Seal-lip designglue injection
|
Humanized design1.Prevent the aluminum frame from scratching the hand
2.Using the rain to clean dirt remaining on the solar module |
 |
 |
Junction box1.Quality diode ensures module running safety
2. IP68 protection level 3. Long service life 4. Heat dissipation
|
Back sheet1.Low moisture permeability against snail trail defect
2.Excellent electric insulation for high system voltage up to 1500v 3.Outstanding weatherproof performance |

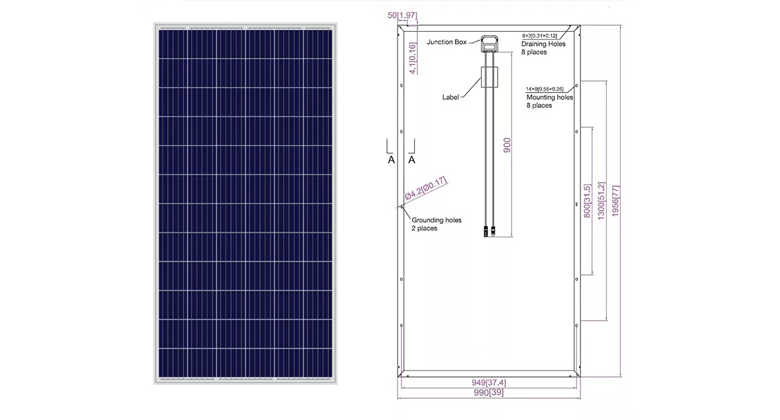

The Specification of Polycrystalline Solar Panel:
| Power: | Maximum Power Voltage: | Maximum Power Current: | Dimension: |
| 350W | 38.9V | 9.00A | 1956*992*40mm |
| 300W | 32.35V | 9.23A | 1640*992*35mm |
| 270W | 31.5V | 8.57A | 1640*992*35mm |
| 200W | 24.5V | 8.16A | 1330*992*35mm |
| 150W | 18.7V | 8.02A | 1480*680*35mm |
| 120W | 18.5V | 6.49A | 1130*680*35mm |
| 100W | 18.9V | 5.3A | 1020*680*35mm |
Key Features of Polycrystalline Solar Panel:
- Photon independent field testing – Ranked in the top 2 of 176 international suppliers.
- Excellent low irradiance performance, PID resistance.
- Positive tight power tolerance of 3%.
- Dual stage 100% EL Inspection warranting defect-free product.
- Module Imp binning radically reduces string mismatch losses.
- arranted reliability and stringent quality assurances well beyond certified requirements.
- Certified to withstand severe environmental conditions.
- 1.Anti-reflective & anti-soiling surface minimise power loss from dirt and dust.
- 2.Severe salt mist, ammonia & blown sand resistance, for seaside,farm and desert environments.
- 3.Excellent mechanical load 2400Pa & snow load 5400Pa resistance.

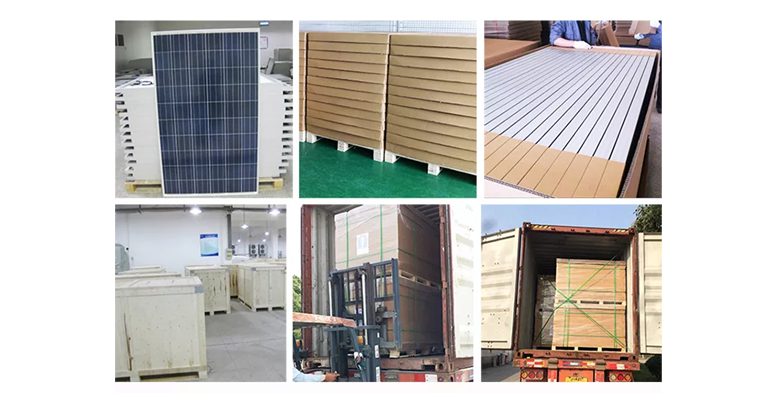

The Production Process of Polycrystalline Solar Panel:
Since 2012, OSLEDER has gained rich experience in designing and manufacturing the most efficient and robust solar panels and the most complete off-grid solar system. A focus on testing, quality control, and traceability ensures our solar power system offers an industry-leading warranty and reliability guarantee. Invest in yourself by going OSLEDER. This will be your most economical long-term investment yet.
